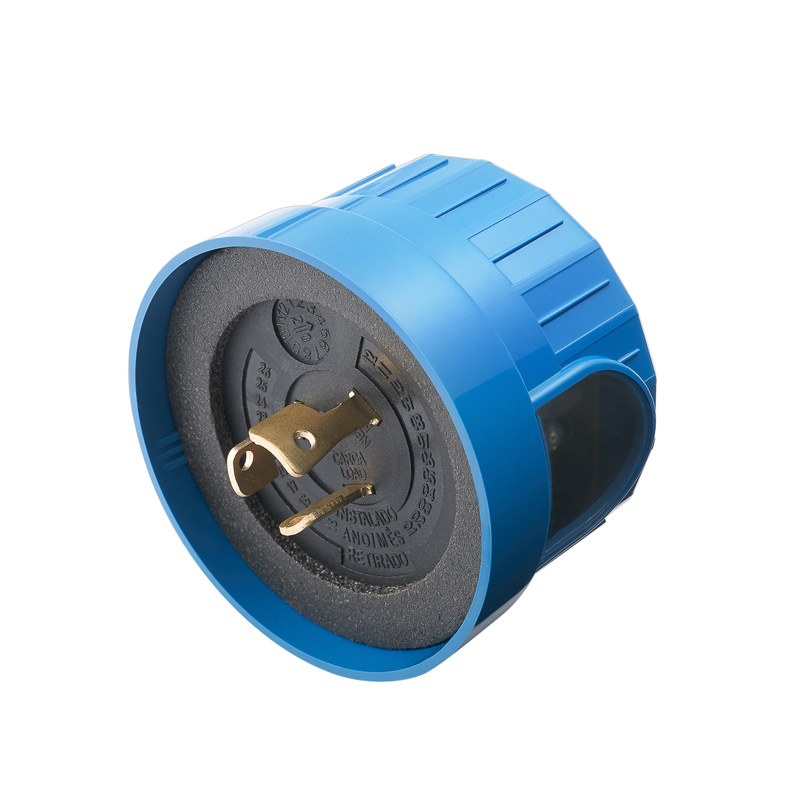

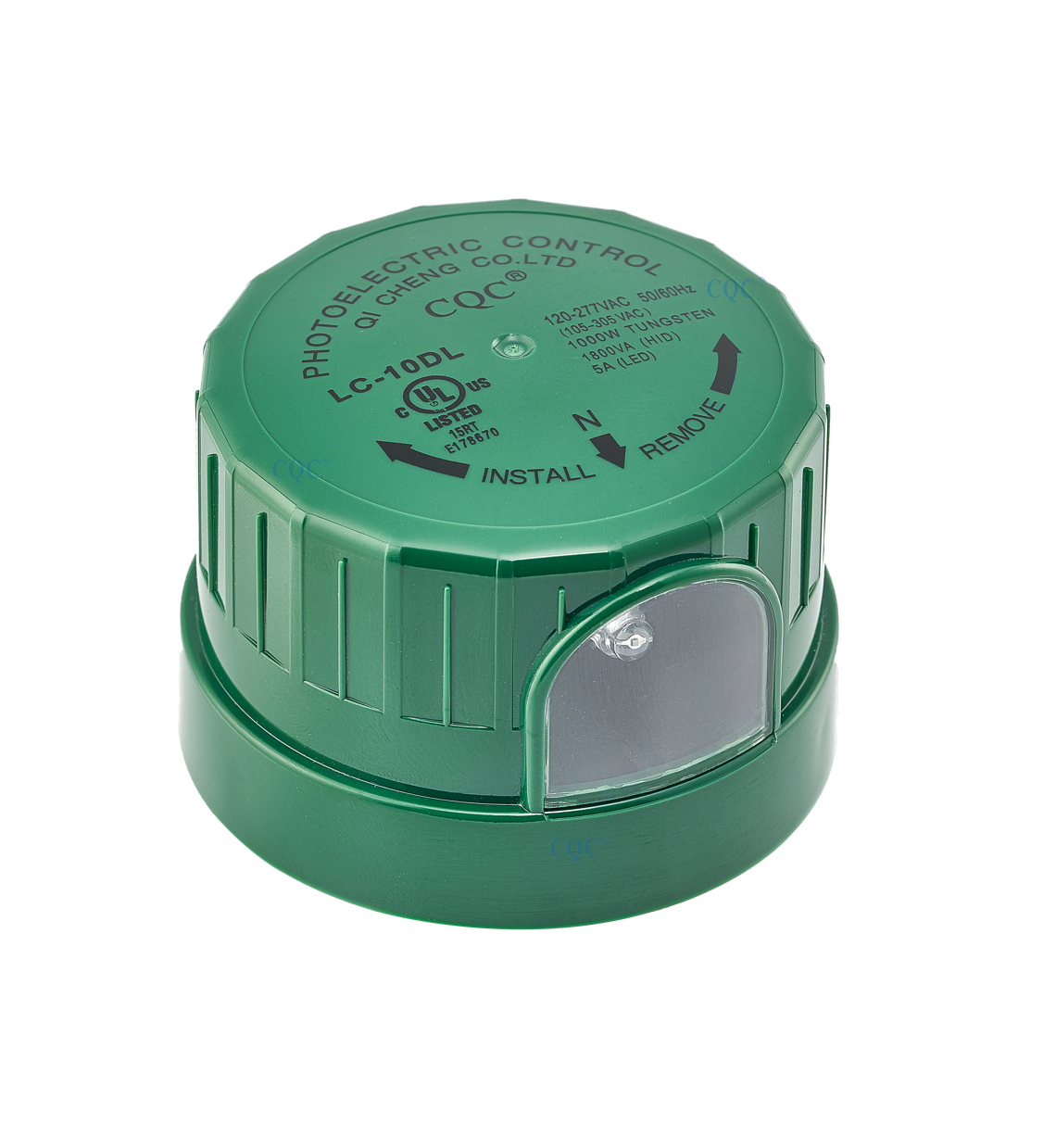

Model code : LC-10DL (Electronic Type)

插锁式光控器
立即询价

参数详情

·Rated Voltage: 120/240VAC (105-305VAC)
·Turn-ON Light Level: 10-16 Lux
·Turn ON/OFF Ratio: 1:3 to 4
·Time Delay: 3-15 sec
·Operating Temperature: -40℃ to +70℃
·Relay: 15A
·MOV Surge Protection: 90/190J/380J(10/1000us)
·Energy Consumption: Less than 1Watt (120V<0.5W)
·Electrical Life: >5000 cycles
·Sensor Type: Silicon Photocell
·Housing: UV stabilized PC
·Failure Mode: Fail ON (standard), Fail OFF (for your option)

·Size: 80mm


 ANSI C136.10 & UL773 Standard

 UL Listed. Reference No.: E178670


● Rated Load:

Code

Specification

10DL1

120-277V(105-305)/1000W/1800VA
