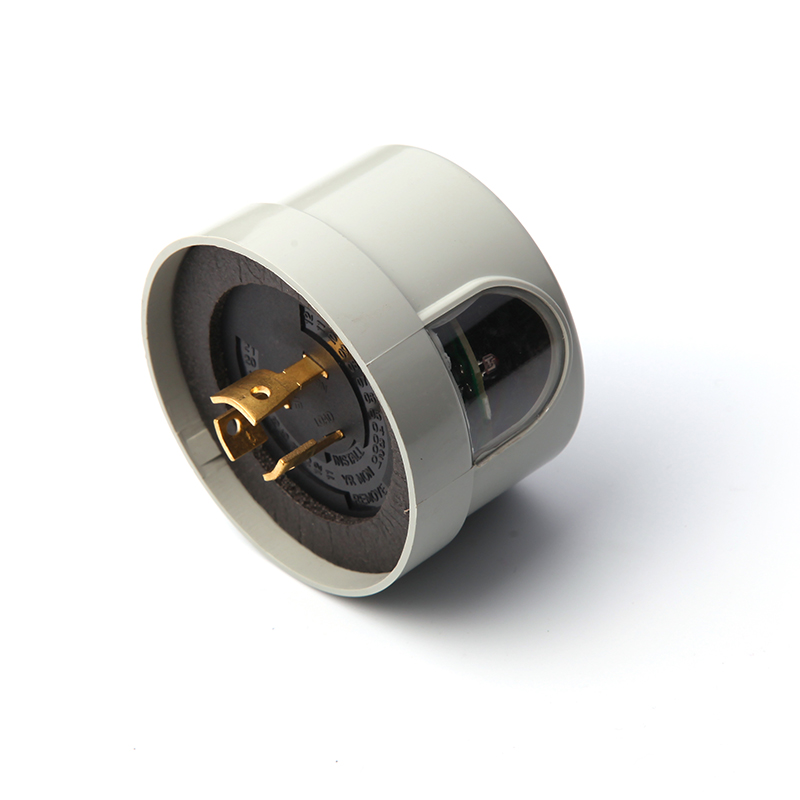

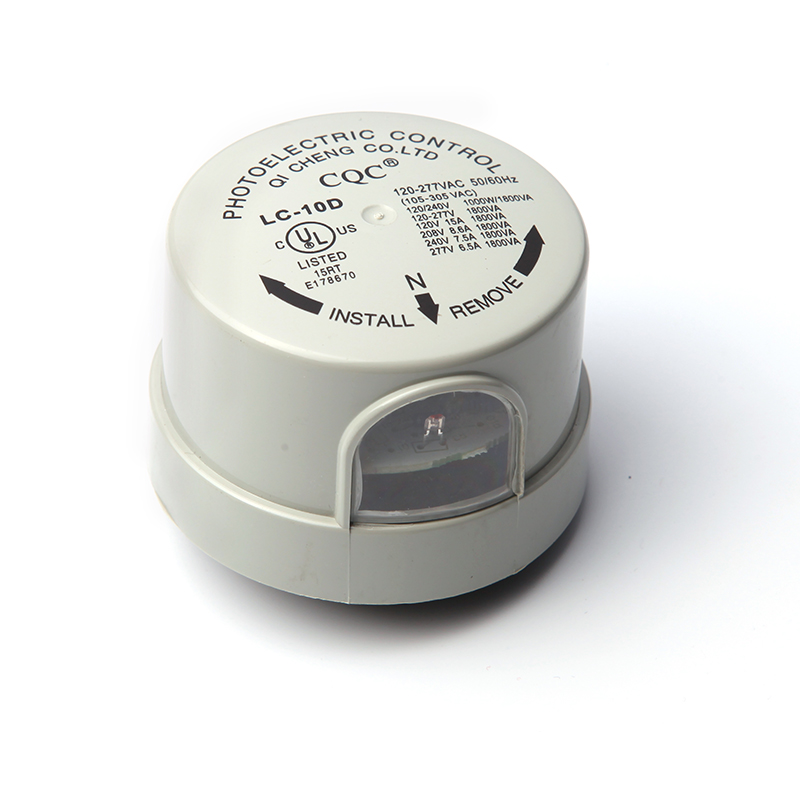

Model code : LC-10D (Electronic Type)

Twist Lock Photocontrol



● Volts & Cover Color – 50/60Hz

- Gray standard for 120VAC

- Maroon standard for 240VAC

- Blue standard for 120/240VAC (105-305VAC)

Turn-ON Light Level: 10-16 Lux

Turn ON/OFF Ratio: 1:1.5 to 4

Time Delay: 3-15  sec

Operating Temperature: -40℃ to +70℃

Relay: 30A

MOV Surge Protection: 90/190J/380J(10/1000us)

Energy Consumption: Less than 1Watt(120V<0.5W)

Electrical Life: >5000 cycles

Sensor Type: Silicon Photocell

Housing: UV stabilized PC

Failure Mode: Fail ON

Size: 80mm,74mm (suitable for North America market),

● UL Listed. Reference No.: E178670

● ANSI C136.10 & UL773 Standard

● Rated Load:
Code Voltage Tungsten (W) Tungsten (VA)
10D127 120-240V 1000 1800 (HID)
10D128 120-240V 1000 1800 (HID)
10D3 120-277V 1000 1800 (HID)
* 10D127/Ф74 , 10D128/Ф 80

Suitable for high-end LED outdoor lighting fixtures

ANSI C136.10 and UL773 Dual Standard Compliant

Multi-volts design: 105-305V, It can work properly even

at the volts as low as 80VACHigh-precision Silicon Photocell,

Invisible light Filterable
